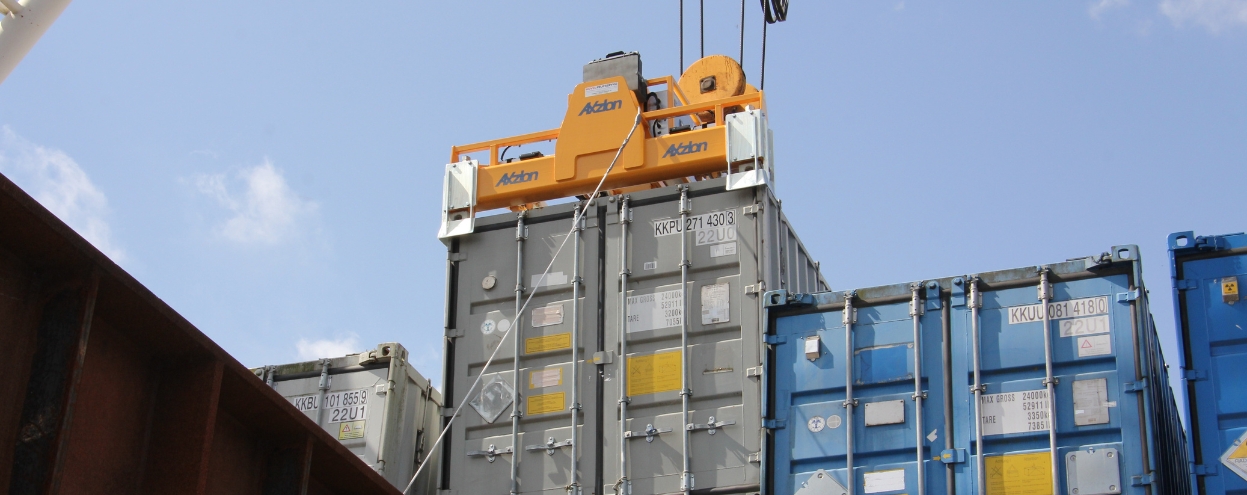

Container Lifting Beams for Safe and Efficient Container Handling
Flexible Solutions for Different Container Sizes and Requirements
Whether mechanical or electric central locking, telescoping design, or chain suspension—SpanSet Axzion offers the right container lifting beams for a variety of applications.
Your benefits at a glance
Safe handling
Solutions for the controlled lifting and moving of containers.
Four different options
Various locking and suspensions systems.
Flexible Applications
Suitable for various container sizes and applications.
Custom features
Various equipment options are available depending on the model.
An overview of our container lifting beams
To ensure the safe and efficient handling of various container types, SpanSet Axzion offers four container lifting beams with different locking and suspension designs. Explore the product range and find the right solution for your needs.
1. Container lifting beam with mechanical central locking system
The economical solution for container handling
The SpanSet Axzion container lifting beam with mechanical central locking system enables the safe lifting and moving of 20′- and 40′-ISO containers.
Locking is performed manually using a suspended chain reel and push rods, which simultaneously engage all four locking bolts. A visual safety indicator helps to check the locking status, while guide plates simplify positioning the lifting beam on the container.
Your benefits:
Suitable for 20′ and 40′ ISO containers
Manual operation via chain reel and push rods
Simultaneous operation of all four locking bolts
Visual safety indicator for locking verification
Guide plates for easy positioning
2. Container lifting beam with electric central locking
Comfortable operation thanks to an electric lock
The SpanSet Axzion container lifting beam with electric central locking system enables the lifting and moving of 20′ and 40′ ISO containers using an existing crane system.
Locking is achieved via energy-efficient electric cylinders and is operated using a wired handheld control unit. All four locking bolts are activated simultaneously. A visual indicator shows the locking status.
Power is supplied externally via the crane as standard and must be provided by the customer. A battery-powered option is also available.
Upon request, the container spreader can be supplied with a DNV design certification.
Your benefits:
Electric locking via energy-efficient electric cylinders
Operation via a wired handheld control unit
Simultaneous actuation of all four locking bolts
Visual indicator for locking status
Guide plates for secure centering on the container
Optional battery-powered power supply
Optionally available with DNV design certification
Optional features for container lifting beam with central locking
Depending on the design, various additional features are available:
Electric lock
For the mechanical design
Flexible control
Wireless or wired, depending on the design
Battery operation
Off-grid power supply
Acoustic signals
For locking and load operation
Forklift bags
For empty transport
Outdoor area
Design for outdoor use
3. Telescopic container lifting beam
Flexible handling of office and storage containers
The telescoping container lifting beam from SpanSet Axzion is designed for lifting and moving 10′, 16′, and 20′ office and storage containers with a load capacity of up to 5,000 kg.
The manual telescoping function allows the lifting beam to be adjusted to different container lengths. Containers are secured using electromechanical twist locks, which are conveniently operated via a radio remote control.
Thanks to the integrated battery power supply, the locking mechanism can be operated independently of an external power source.
Your benefits:
Suitable for 10′, 16′, and 20′ office and storage containers
Load capacity up to 5,000 kg
Manually telescoping design for different container lengths
Electromechanical twist locks for securing the container
Comfortable operation via radio remote control
Battery-powered operation without an external power supply
4. Container lifting beam with chain suspension
Robust solution with variable chain suspension
The SpanSet Axzion container lifting beam with chain suspension is designed for lifting and moving 20′- and 40′-ISO containers.
The lifting beam features a Vario-suspension system for single hooks in accordance with DIN 15401 and is equipped with high-strength grade 10 chains. The container is secured using the container hooks included with the lifting beam.
Depending on the design, the chains are available with or without chain shorteners. For versions with chain shorteners, the chain lengths can be adjusted to suit different load centers of gravity.
Your benefits:
Suitable for 20′ and 40′ ISO containers
Vario-suspension system for single hooks in accordance with DIN 15401
High-strength grade 10 chains
Available with or without chain shorteners
Adjustment for different load centers in versions with chain shorteners
Delivery includes container hooks
Which container lifting beam is the right one?
Whether manual or electric locking, telescoping design, or chain suspension: The choice of the right container lifting beam depends on the container size, weight, the available crane system, and the specific operating conditions.
The following overview shows the key differences between our four designs:
Mechanical central locking system
Container sizes
20' / 40'
Container type
ISO container
Locking mechanism
ISO bolts
Operation
Manually via a reel chain
Special feature
Economical, manual central locking system
Electric central locking
Container sizes
20' / 40'
Container type
ISO container
Locking mechanism
Electrically operated ISO bolts
Operation
Wired hand-operated control valve
Special feature
Electric central locking system with visual lock status indicator
Telescopic container lifting beam
Container sizes
10' / 16' / 20'
Container type
Office and storage containers
Locking mechanism
Electromechanical twist locks
Operation
Wireless remote control
Special feature
Manually adjustable length, load capacity up to 5,000 kg
4. Chain-suspension
Container sizes
20' / 40'
Container type
ISO container
Locking / mounting
Container hooks
Operation / suspension
Grade 10 chains
Special feature
Vario-suspension, optionally with chain shorteners
Container lifting beam in practice
Get an insight into how our container lifting beams work and how they are used in practice.
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
FAQs about our container lifting beams
What is a container lifting beam used for?
What is the difference between mechanical and electric central locking?
For which container sizes are the container lifitng beams suitable?
Can container lifting beams be customized?
What are the advantages of a container lifting beam with a chain-suspension system?
Ready for your container lifting beam?
Our experts will be happy to advise you on selecting the right container lifting beam for your needs.
Request a no-obligation quote or a personalized consultation today.
